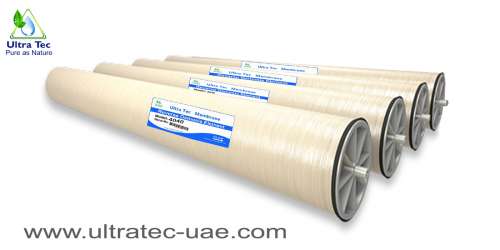

Ulltra Tec BW 4040 RO Membrane

Ulltra Tec BW 4040 RO Membrane

RO membrane elements Brackish Water (BW) Series including high desalination and high flow are suitable for desalination of surface water,underground water.

ULTRA TEC RO membrane elements Brackish Water (BW) Series

including high desalination and high flow are suitable for desalination of surface water,underground water and low-pollution
water source with TDS<5000ppm and mainly applied in pure water in food and pharmaceuticals industry,
desalted water in power station, ion exchange softening system and purification system of river and underground water.

Specification and Main Performance of Membrane Elements

Model_________Active Membrane Area ft2(m2)_____Average Permeated Flow GPD (m3/d)_______ Stable Rejection Rate ( %)_____ Minimum Rejection Rate (%)
JBW-8040______400(37.2)________________________ 9800(37.1)_____________________________ 99.5___________________________ 99.3
JBW-4040______90(8.4)__________________________ 2400(9.1)______________________________ 99.5___________________________ 99.3

Testing Conditions:
Testing Pressure…………………………………………….225psi (1.55Mpa)
Temperature of Testing Solution…………………………… 25?
Concentration of Testing Solution (NaCl)…………………2000ppm
pH Value of Testing Solution………………………………7.5
Recovery Rate of Single Membrane Element……………. 15%

Operation Limits and Conditions
Max. Working Pressure…………………………………600psi(4.14Mpa)
Max. Feedwater Flow……………………………………16 Gpm(3.6m3/h)
Max. Feedwater Temperature……………………………45?
Max. Feedwater SDI15……………………………………5
Residual Chlorine Concentration of Feedwater……………….<0.1ppm
pH Range of Feedwater during Continuous Operation………3~10
PH Range of Feedwater during Chemical Cleaning…………2~12
The Max. Pressure Drop of a Single Membrane Element..... 15psi (0.1Mpa)





Industrial

Contact us to order or for more details.

Write to us to order or ask for more information:
