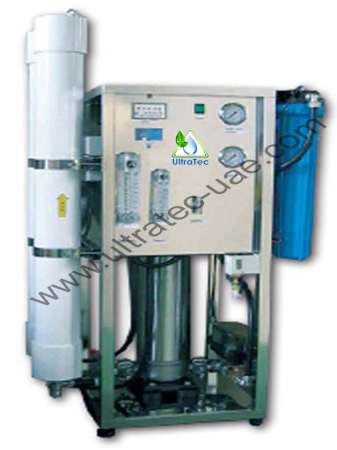

ULT 3000G up to 4000G Water Treatment Plant

Water Treatment Plant with Inlet Actuator & Flush Solenoid Valve Source & ROo Gauge Inlet & Concentration Flow meter

Ultra Tec INDUSTRIAL CO.,LTD Reverse Osmosis Flow Chart WATER 2 FEED TDS FLOW METER 35KG 15KG CONCENTRATE WATER FLOW METER FLUSHING OUTLET FLUSHING SOLENOID VALVE WATER IMPROVER ACTUATOR WATER IMPROVER PUMP PRESSURE REGULATOR PRESSURE GAUGE PURE WATER MEMBRANE HOUSING MEMBRANE HOUSING

Water Treatment Plant 3000 to 4000 GPD

Ultra Tec INDUSTRIAL CO.,LTD Reverse Osmosis Parts Introduction

Ultra Tec INDUSTRIAL CO.,LTD Reverse Osmosis Specification Gate Valve Only for vertical pump using.

S.steel frame(Control box-Option)
20" Prefilters x 3
S.steel or Fiber Glass Membrane vessel
4" x 40" membrane
Inlet Actuator & Flush Solenoid Valve
Source & Ro Gauge
Inlet & Concentration Flow meter
S.steel Vertical Pump 1.1kW
(single phase motor)
Auto Flush Controller & TDS detector
Pressure Regulator
Gate Valve
Anti-scalent device*1
Electricity consumption: 1120W
Shipping Dimension & weight:80X50X145cm 78kgs

PROCESS

Ultra Tec INDUSTRIAL CO.,LTD Reverse Osmosis Electrical Diagram Control Box Flushing Solenoid TO FLOATING / H.P. SWITCH DUAL T.D.S. WATER RO Pump internal wiring 3 Blue Blue Yellow Yellow Power (3.5 point) ON/ OFF SWITCH Green/Yellow Red Green AC-220V Red Black Red Brown Blue (W) (B) (R) Full water switch Low Pressure Switch : Yellow MC Valve : Red Magnetic Switch : Green ( A2, 95) Electrical Pressure valve T.D.S. TEST BAR PURIFIED WATER T.D.S. TEST BAR INLET WATER RO PUMP 2T1 6T3 Red Black INLET OUTLET 2T1 A2 1 3 95 1 5 6T3 T O C ON/OFF U1 V1 W2 U2 W1 V2 PUMP FLUSH SOURCE FULL POWER MANUAL R WATER FLUSHING CONTROL A S S O C I A T I O N MEMBER W A T E R QUALITY Blue Brown White Black Green Black GROUNDING 4. Filter Housing with Cartridges 20" Filter Housing 20" Cartridge: Sediment 5, 1micron Carbon Block Carbon Block Actuator Shutting down while Low pressure switch sends out signal. 1". Solenoid Valve Flushing while control box sends out flushing signal.

PERFORMANCE

Ultra Tec INDUSTRIAL CO.,LTD Reverse Osmosis Specification Vertical Pump Type: 3HP 4HP 5.5HP 1500-2000GPD: 1/2" 3000-4000GPD: 1/2" 4500-6000GPD: 1/2" 6000-8000GPD: 3/4" 10000GPD: 3/4" 5. RO Membrane & RO Housing (A) RO Membrane Housing (B) RO Membrane: 1.Specification of Membrane (1) Max. Operation Pressure: 300PSI O (2) Max. Operation Temperature: 45 C ( 3) Turbidity (NTU): <1 (4) Chlorine: 0.1PPM (5) PH Range: 2~11 (6) Flow Rate: 10GPM (7) Max. S.D.I. Index: 5 (8) Salt Rejection Rate: 96% 2.Application Data For System Design: (1) Max. Operation Pressure: 190~220PSI O (2) Max. Operation Temperature: 45 C (3) Turbidity (N.T.U.): <1 (4) Chlorine: <0.1PPM (5) PH Range: 4~11 (6) System Inlet Water pressure: 3.5KG+/- 15% (7) Max. S.D.I. Index: 4 (8) Salt Rejection Rate: 96% (9) Product Water Generate: 25% O 3. Testing Environment: 25 C/pH=8 (1) NaCl: 2000 PPM (2) Operating Pressure: 225PSI (3) Recovery Rate: 15% 600PSI` Water Inlet pressure Gauge 2 0~15 KG/CM Oil-Filled Pressure Gauge 2 *Not allow to operate under 1.5KG/CM * RO Inlet Water Pressure Gauge 2 0~35KG/CM (30bar)Oil-Filled Pressure Gauge, set the pressure between 150~180PSI to get the maximum performance. Pressure Regulator Adjust Clockwise to boost RO operating pressure, Counterclockwise to Lower operating pressure.
