6000 gpd system | 6000 gpd ro system

Inlet & Concentration Flow meter S.Steel Vertical Pump 2.2kW (Single phase motor) Auto Flush Controller & TDS detector

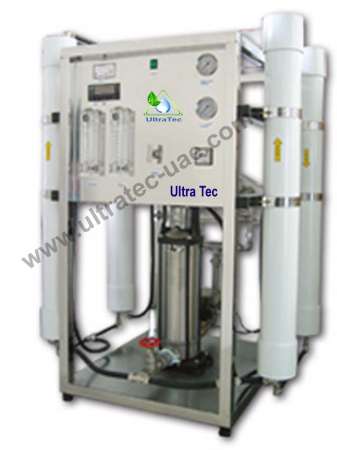

6000 Upto 8000 GPD Reverse Osmosis System

Ultra Tec 6000-8000 GPD Reverse Osmosis water Purification System are utilized for sanitizing drinking water. During the time spent this framework, the untreated water particles are constrained through a semi-porous layer, which obstructs the polluting influences and contaminants. So they are in this way removed from the earth to create clean drinking water.

Switch assimilation frameworks can expel various kinds of particles and particles from arrangements. These water channels are broadly utilized in both creation of drinking water and for mechanical purposes.

S.steel frame (Control box-Option)e
20" Prefilters x 3
S.steel or Fiber Glass Membrane vessel
4" x 40" membrane
Inlet & Flush Solenoid Valve
Source & Ro Gauge
Inlet & Concentration Flow meter
S.Steel Vertical Pump 2.2kW | (Single phase motor)
Auto Flush Control & TDS detector
Pressure Regulator
Anti-scalent device
Electricity consumption: 764W
Shipping Dimension & weight:80X50X145cm 65kgs

Premium designed for City Water & Well Water Use 6000 GPD RO System Dimensions: 28"W x 32"D x 49"H 8000 GPD RO System Dimensions: 28"W x 32"D x 49"H Power: 220v 60hz (1 phase) 6000 GPD System Weight: 190lbs / 8000 GPD System Weight: 220lbs High Recovery - Reduce Waste, Uses Less Water - 50%, 60%, up to 75% *Recovery dependent on water chemistry. Designed for applications where floor space is at a premium. All major system elements are mounted within a sturdy Tubular Stainless Steel Frame - NOT ALUMINUM, welded for long term rigidity and open for easy access to all components. These systems are fully equipped with the instruments and controls needed for reliable long term operation. Stainless steel frame for long lasting durability Structural ABS control panel On / Off Switch Float Switch For Atmospheric Tank 20" Pretreatment Filter: Sediment, Rust, and Debris Removal Quick connect drain and product connections Feed and membrane vessel pressure gauges Product water flow meter Brine and recirculation flow meters with integral needle valves Low pressure cut off High pressure switch Patented PureFlush Feature - Flushes the RO membrane(s) with clean water on shut down/start up. (3 & 4) Low energy, thin film membrane element(s)
